Neuro Mep 4 / Neuro Mep 8

Request a quote on this product
emg neuromep neuromed

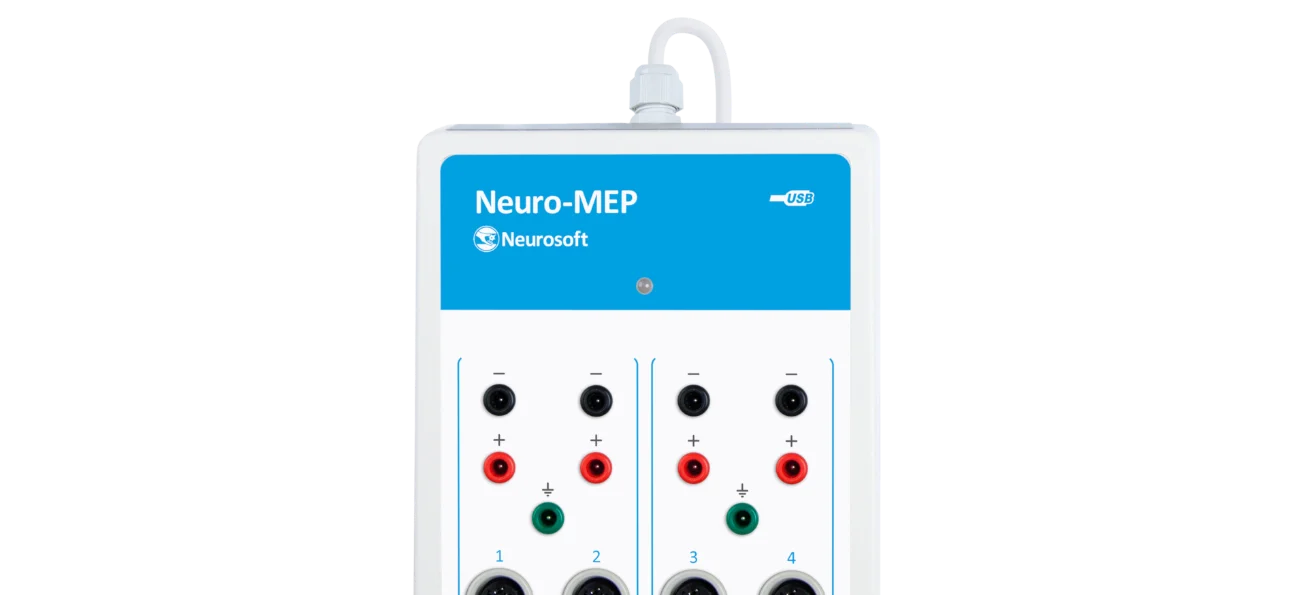

Presentation of Neuro Mep 4 / Neuro Mep 8

  • Electroneuromyography (study of motor and sensory conduction velocities (VCS), F-wave, H-reflex (including double stimulation), motor and sensory inching)
  • Electromyography (spontaneous activity, interference curves, motor unit action potentials (MUP))
  • Neuromuscular junction (repetitive stimulation, jitter)
  • Motor Unit Number Estimation (MUNE)
  • Additional techniques: blink reflex, sacral reflex, bulbar-cavernous reflex, T* reflex, cutaneous sympathetic response
  • Somatosensory evoked potentials (SEP)
  • Visual evoked potentials (VEP)
  • Auditory evoked potentials (AEP)
  • Vestibular myogenic potentials (VMEP)
  • Cognitive evoked potentials (CEP)
  • Transcranial Magnetic Stimulation (TMS)
  • Intraoperative monitoring (IOM)
  • Heart rate variability (HRV)***.
  • Objective Audiometry (OA)
  • Electroretinography (ERG)
  • Electro-oculography (EOG)

* requires reflex hammer
** requires magnetic stimulator
*** if the corresponding accessories are available

Modular architecture with the use of USB technology

All modules included in the delivery are connected to the computer via a USB interface. This flexibility allows you to combine them to make a configuration that fits your needs.

For example, if you connect an additional 4 channel amplifier to a Neuro-MEP-4 device, you will have an 8 channel digital device.

Up to 10 different USB devices can be connected.

Amplifiers and stimulators with first class specifications

The sampling rate of the Neuro-MEP-4 amplifiers is 160 KHz, the A/D conversion is 16 bits and the bandwidth is 0.02 Hz to 10 KHz.

The electrical stimulator can deliver stimuli with a current intensity of 0.1mA to 100mA at a frequency of up to 50Hz. It is also possible to specify the shape of the stimulus: rectangle, meander, trapezoid, sinusoid.

These specifications can truly be called First Class, especially since they allow for excellent quality curves.

Set of EMG electrodes on order

We have developed a range of EMG electrodes that can be controlled with EMG and PE systems.

Analysis software on the .NET platform

Neuro-MEP program is developed on the .NET platform. It is the most modern technology for software development.

The use of .NET allows to optimize the time of program creation and to considerably increase their reliability by using modern and practical interfaces, it also allows to increase the hardware capacities to their maximum.

New EMG techniques

  • motor and sensory inching
  • jitter
  • sacred reflex
  • bulbar-cavernous reflex
  • T* reflex
  • Myogenic vestibular PE
  • automatic detection of PAUM
  • combined conduction velocities (motor and sensory)
  • recording and analysis of spontaneous and voluntary activity in the same test

Features of Neuro Mep 4 / Neuro Mep 8

Produit certifié ISO

Neuromed est certifié ISO 9001 & ISO 13485
vous garantissant fiabilité et qualité de nos services
  • neuromep 4 8 emg enmg neuromed 1
  • neuromep 4 8 emg enmg neuromed 9
  • neuromep 4 8 emg enmg neuromed 8 min
  • neuromep 4 8 emg enmg neuromed 7 min
  • neuromep 4 8 emg enmg neuromed 6
  • neuromep 4 8 emg enmg neuromed 5
  • neuromep 4 8 emg enmg neuromed 4
  • neuromep 4 8 emg enmg neuromed 2

    Documentation on Neuro Mep 4 / Neuro Mep 8

    Fiche descriptive de l'appareil

    Découvrez toutes les caractéristiques techniques du Neuro Mep 4 / Neuro Mep 8 en un clic

    Product catalog of Neuromed

    Download our summary brochure of our different product lines.
    View the catalog

    Request a quote on this product

    Get a custom quote for the Neuro Mep 4 / Neuro Mep 8 now
    Request a quote
