Neuron Spectrum 4/EPM

Request a quote on this product
neuron spectrum 4epm neuromed

Presentation of Neuron Spectrum 4/EPM

The main difference between Neuron-Spectrum-4/EPM and other digital EEG and EP systems is that it is already equipped with the stimulator set for evoked potential (EP) acquisition.

The Neuron-Spectrum-4/EPM system can also be upgraded to a full 4-channel EMG device.

The device is equipped with :

  • 21 EEG channels
  • 4 polygraphic channels with a sampling rate of up to 16,000 Hz
  • 1 ECG channel
  • 1 breathing channel
  • 2 DC channels (in most cases used to record data from position sensors)

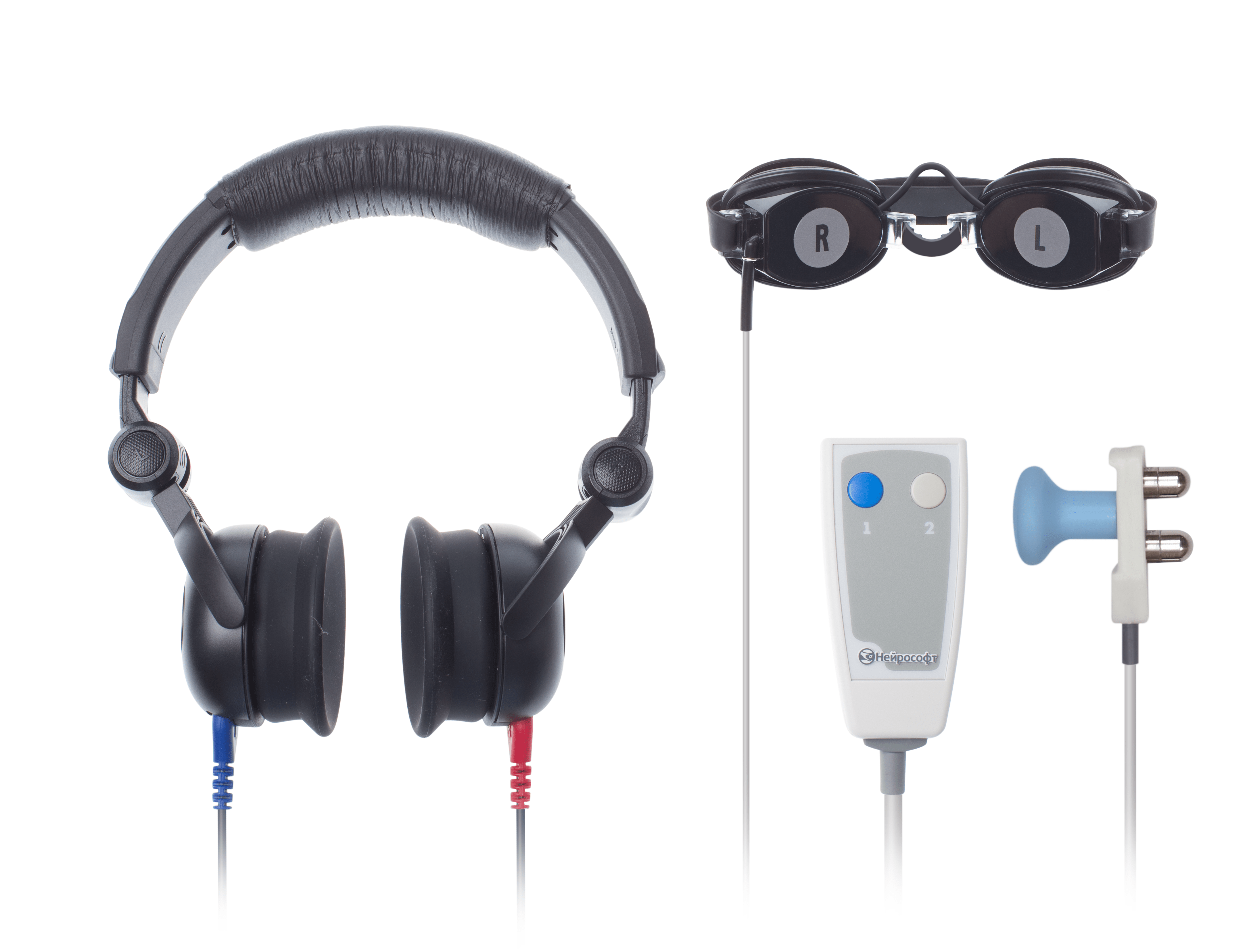

  • Visual, auditory and electrical stimulators
  • Additional SpO2 channel can be integrated at your request

The high quality amplifier can be used for :

  • Routine EEG
  • Long-term EEG monitoring
  • Evoked potential study of all modalities (somatosensory, visual, auditory or cognitive)
  • Scientific research

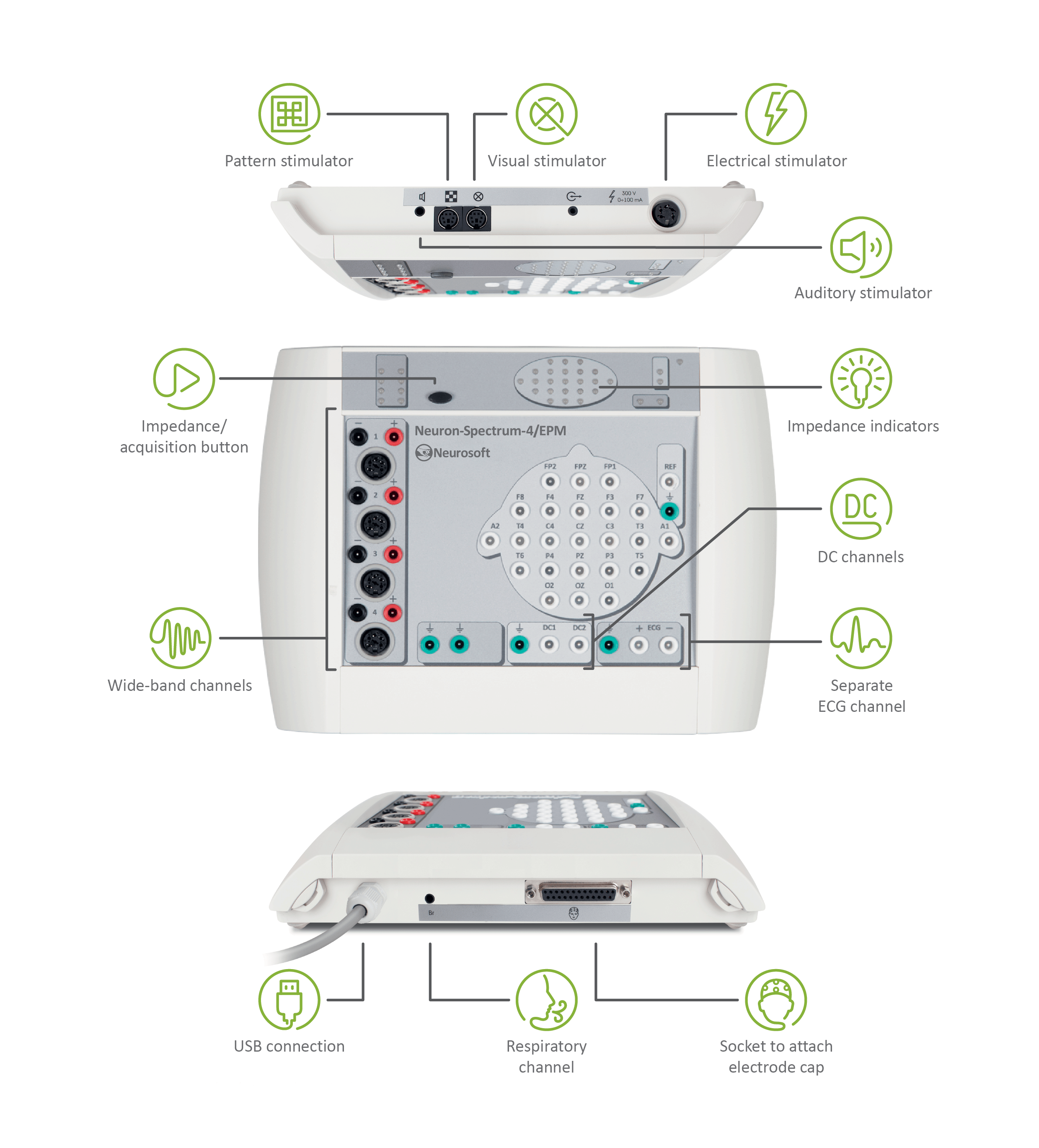

Impedance measurement button on the EEG unit :

It allows a physician to measure impedance on the spot right after placing electrodes on a patient.

The impedance values of all electrodes are indicated on the front panel by colored LED indicators.

In addition, this button allows you to monitor and record EEG signals.

Features of Neuron Spectrum 4/EPM

Product lines





, , , , , , , ,

Produit certifié ISO

Neuromed est certifié ISO 9001 & ISO 13485
vous garantissant fiabilité et qualité de nos services
  • eeg neuromed neuronspectrum 4 2
  • eeg neuromed neuronspectrum 4 9
  • eeg neuromed neuronspectrum 4 8
  • eeg neuromed neuronspectrum 4 7
  • eeg neuromed neuronspectrum 4 6
  • eeg neuromed neuronspectrum 4 5
  • eeg neuromed neuronspectrum 4 4
  • eeg neuromed neuronspectrum 4 3

    Documentation on Neuron Spectrum 4/EPM

    Fiche descriptive de l'appareil

    Découvrez toutes les caractéristiques techniques du Neuron Spectrum 4/EPM en un clic

    Product catalog of Neuromed

    Download our summary brochure of our different product lines.
    View the catalog

    Request a quote on this product

    Get a custom quote for the Neuron Spectrum 4/EPM now
    Request a quote
